System identification#

FrankaTwin makes IsaacLab’s Franka move like your real Franka robot under the same impedance control. It replays real excitation runs in sim with identical setpoints, gains and control law, and fits the sim’s joint dynamics until the trajectories match.

This page is the procedure to run it. For what the fit identifies, how the optimizer works and how the excitations are designed, see SysID details.

Workflow#

1. Collect#

PC with the daemon running on the NUC.

Collect two runs, and optionally a third. The fit sees only the first; the second is another waveform at stiffer gains, so it tests whether the identified dynamics still hold on a motion the fit never saw when the controller pushes harder, and the optional third continues the same chirp above 0.7 Hz at the fit gains.

conda activate frankatwin
cd frankatwin

# For the fit. Home the arm before every run: a run leaves the joints away from where it started
python examples/move_to.py
python examples/cart_impedance.py --mode chirp --band low --rate 50 --kp-pos 200 --kp-ori 20 \
    --log-1khz data/sysid/chirp_low_fit.csv

# Held out: another waveform, stiffer gains, never passed to step 2
python examples/move_to.py
python examples/cart_impedance.py --mode multiband --profile heldout --rate 50 --kp-pos 500 --kp-ori 30 \
    --log-1khz data/sysid/multiband_heldout.csv

# Optional, also held out: the same chirp continued to 3 Hz; loads the wrist harder -- watch the torque line
python examples/move_to.py
python examples/cart_impedance.py --mode chirp --band high --rate 50 --kp-pos 200 --kp-ori 20 \
    --log-1khz data/sysid/chirp_high_heldout.csv

Each run writes the CSV plus a JSON sidecar of the same name on the PC (format); both are needed downstream, the <name>_targets.csv next to them is not. Steps 2-3 run on the SIM machine, so copy data/sysid/ over to it first.

2. Fit#

SIM

conda activate <isaaclab env>
cd /path/to/IsaacLab
DATA=~/frankatwin/data/sysid    # where step 1 wrote the runs, or where you copied them to; step 3 reuses it
python scripts/tools/sysid_franka_osc.py --headless --num_envs 512 --max_iter 40 --sigma 0.3 \
    --real_csv $DATA/chirp_low_fit.csv --real_sidecar $DATA/chirp_low_fit.json

The optimization takes about 1 h at 512 envs (tested on an RTX 5090) and writes logs/sysid_franka/<timestamp>/sysid_best_params.json under the IsaacLab directory.

Fitting on more runs

If the identified dynamics should hold up better on high-acceleration motion, add a high-frequency run such as the high band to the fit — repeat --real_csv / --real_sidecar — and tune the weights with --traj_weights 1.0,1.0 (one per run; default 1.0 each). Whatever you fit on, keep the held-out runs out of this list. Which trajectories to fit on has the measured trade-off on our arm.

3. Validate#

SIM

Replay the validation run from step 1 — the multiband the fit never saw — with the fitted parameters, and score it against the real run. One command does both:

python scripts/tools/apply_sysid_params.py \
    --best logs/sysid_franka/<ts>/sysid_best_params.json --invoke-replay \
    --real-csv $DATA/multiband_heldout.csv \
    --real-sidecar $DATA/multiband_heldout.json --headless

It leaves, next to the real CSV:


`multiband_heldout_sim_sysid.csv` + `.json`	the sim trajectory and its sidecar
`compare_multiband_heldout_sim_sysid/*.png`	position / orientation / per-joint overlays of target, real and sim, the per-joint error and the 3-D path
`compare_multiband_heldout_sim_sysid/metrics.json`	the scores, sim against real: `ee.pos.rmse_m` (per axis and `3d`), `ee.ori.rmse_rad`, `joints.pos_rmse_rad` (per joint), `joints.pos_rmse_all_rad`, `joints.pos_mse_all_rad2`, `joints.vel_rmse_rad_s`; under `tracking`, each side against the target

The replay follows the targets logged in the CSV under the gains of the sidecar, so the optional high band, if collected, is scored by the same command with chirp_high_heldout.csv / .json.

--print-snippet (instead of --invoke-replay) prints the fitted parameters as a Python dict to paste into your own task’s config.

Our results#

Our FR3 with a Franka Hand, fitted on the low band alone with the step 2 command above and validated on multiband_heldout — 12 s, three tones per axis, kp 500/30: a waveform and a gain set the optimizer never saw. Sim against real:

	baseline (PhysX defaults)	fitted
EE position RMSE (3-D)	20.02 mm	5.27 mm
EE orientation RMSE	52.34 mrad	17.87 mrad
joint position RMSE (all joints)	288.42 mrad	54.34 mrad
joint velocity RMSE (all joints)	238.76 mrad/s	36.60 mrad/s
joint position MSE	8.32 × 10⁻² rad²	2.95 × 10⁻³ rad²

Blue is the real arm, orange the twin, dashed the commanded reference. The impedance controller lags the reference by the same amount on both sides, which is the point — a twin that tracks the reference better than the real arm is a twin missing friction and delay.

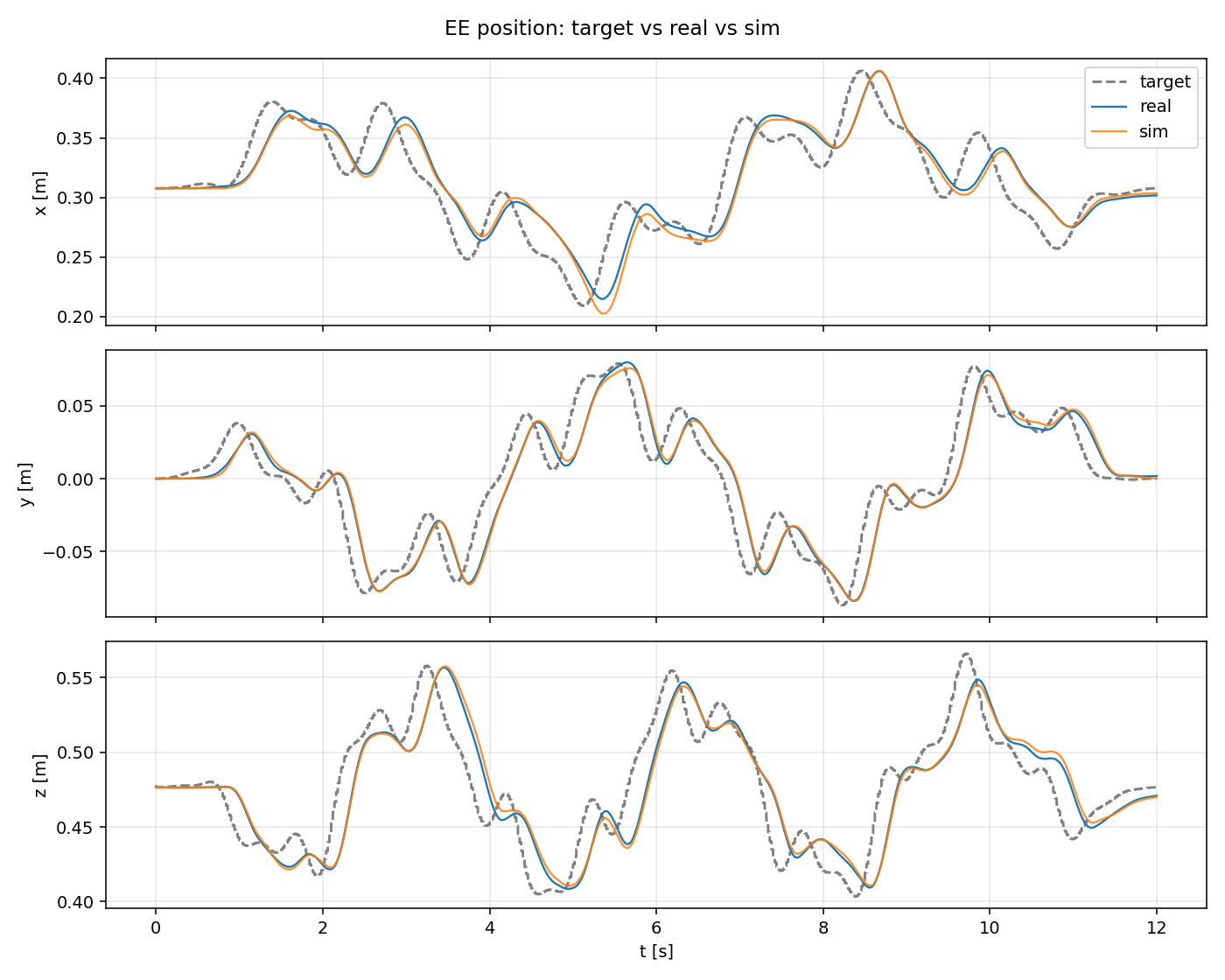

Held-out multiband: EE position x/y/z, target vs real vs sim

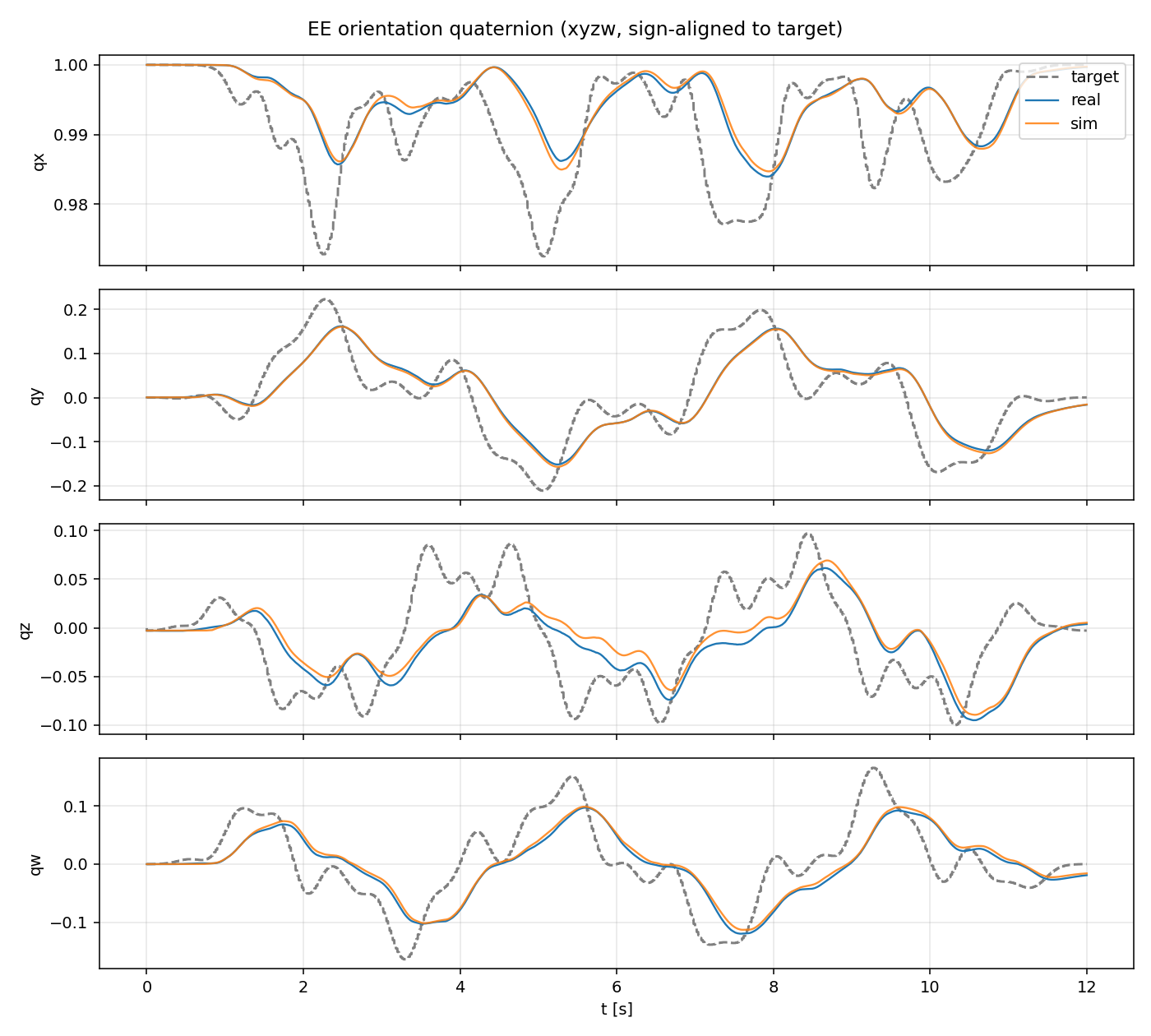

Held-out multiband: EE orientation quaternion, target vs real vs sim

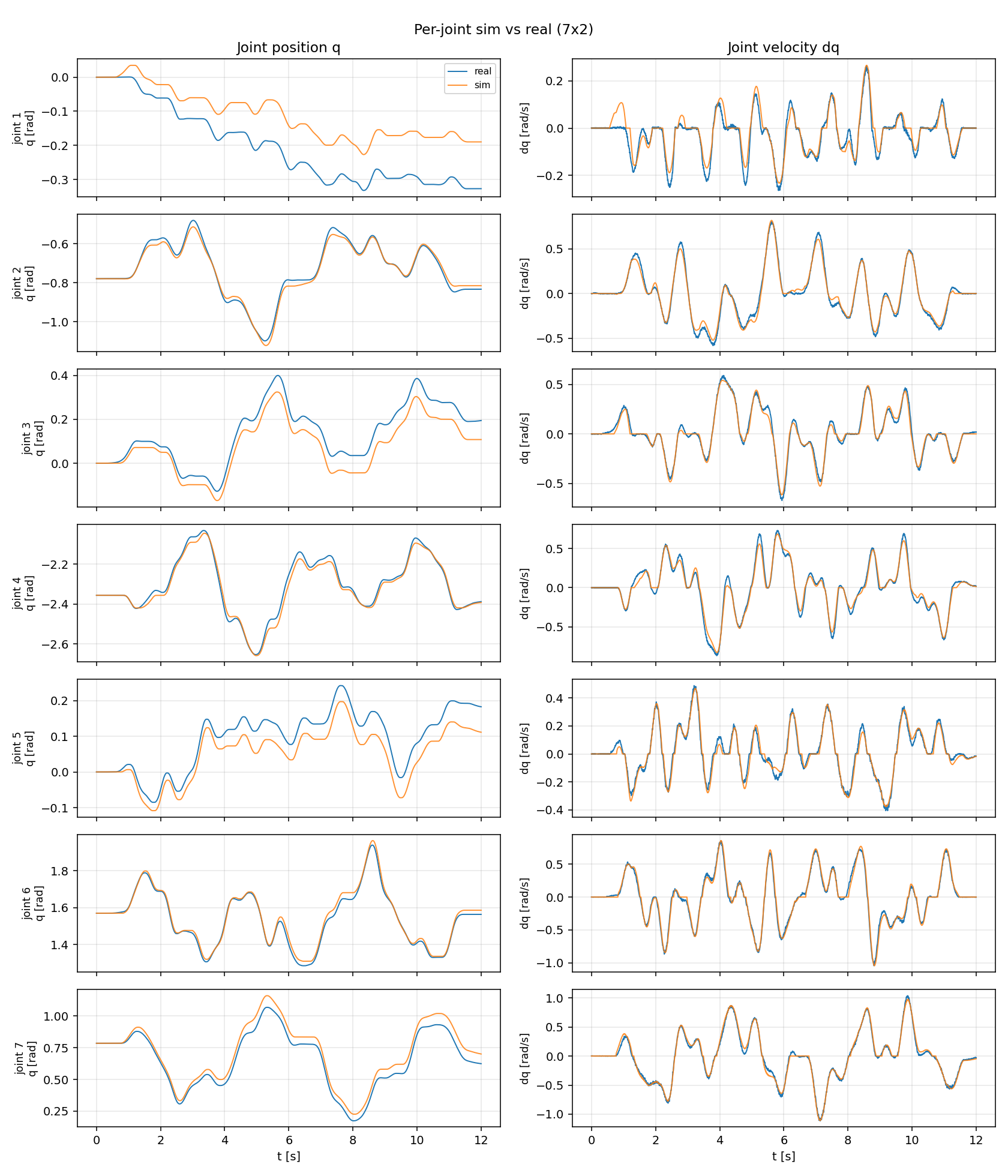

Held-out multiband: real vs sim joint position and velocity, all seven joints

Per-joint position RMSE on the held-out run [mrad]:

	j1	j2	j3	j4	j5	j6	j7
baseline	545	97	351	81	235	62	294
fitted	101	18	62	20	46	17	60

A second held-out run — the low-band chirp itself, recorded at kp 500 / 30: the fit’s own waveform at gains it never saw — scores with the same parameters:

	baseline (PhysX defaults)	fitted
EE position RMSE (3-D)	19.52 mm	3.59 mm
EE orientation RMSE	47.20 mrad	14.64 mrad
joint position RMSE (all joints)	470.76 mrad	28.47 mrad
joint velocity RMSE (all joints)	320.28 mrad/s	35.89 mrad/s

These are the figures the README quotes; the comparison video in the README shows this run — the twin beside the real arm, with and without the identified parameters.

Which trajectories to fit on#

Two fits, same population and budget, scored on the same held-out run:

fit	high band	held-out q	held-out EE
low band only	62.4	54.3	5.27
low + high, equal weights	27.8	34.1	5.75

Joint position RMSE [mrad] on the high-band run and on the held-out run, EE position RMSE [mm] on the held-out run.

The low band alone leaves the twin weak where the low band carries no information: more than twice the joint error on the high-band run. Adding the high band with equal weights halves that and cuts held-out joint error by a third, for half a millimetre of EE position — the better default if the twin will see high-acceleration motion.

Fitted parameters (motor_delay_steps = 3, i.e. three 1 ms ticks):

joint	armature [kg·m²]	μ_static [N·m]	μ_dynamic [N·m]	μ_viscous [N·m·s/rad]
j1	0.425	1.13	0.59	2.73
j2	0.281	1.04	0.65	3.27
j3	0.185	1.58	1.00	0.76
j4	0.189	1.74	1.20	2.23
j5	0.182	1.17	0.75	1.09
j6	0.159	1.38	0.41	0.05
j7	0.106	1.02	0.44	0.50

These are for our FR3; friction varies unit to unit, so run the fit on yours and use ours only as a check on the magnitudes. The individual values are loosely identified: across this run’s checkpoints the score fell monotonically while μ_static on j5 ranged over 0.01–1.73 N·m. The ensemble predicts well; the numbers are not measured physical constants. No parameter sat against an upper bound (85 % of range at most), so widening --armature_max, --friction_max or --viscous_max is not indicated.
